ECG traces are flat
1

Check the continuity of the cable connecting body level amplifier to Treadmill controller. Details : Refer Cable DC1

2

Check the continuity of the cable connected from connector (ident CN21) to the 9 pin female panel connector. Details : Refer Cable BP1

3

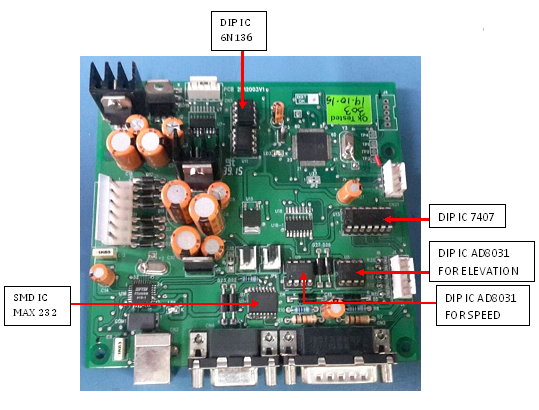

IC 6N136 (ident U11,U12) on PCB 12003v1 interchange these IC's. Details : Refer Image 1

Elevation DOWN problem
1

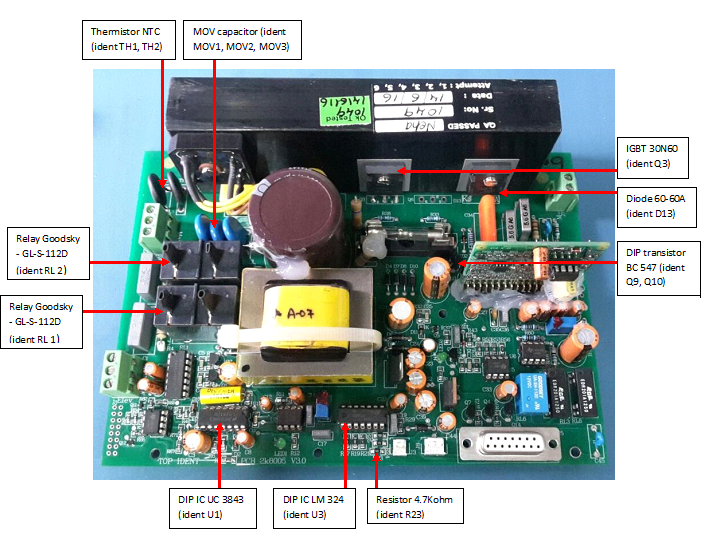

Check relay goodsky - GL-S-112D (ident RL 1) is faulty on PCB 8005v3.0,replace it. Details : Refer Image 2

Elevation problem
1

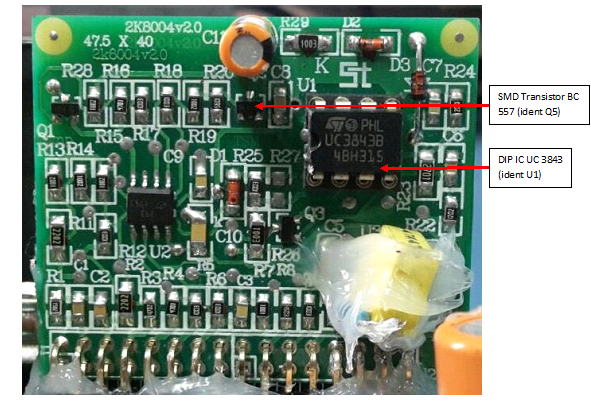

SMD transistor BC 557 (ident Q2) is faulty on PCB 8004v3.0, replace it. Details : Refer Image 3

Elevation up problem
1

Check relay goodsky - GL-S-112D (ident RL 2) is faulty on PCB 8005v3.0,replace it. Details : Refer Image 2

Required speed or elevation not obtained
1

AD 8031 (ident U9) for speed is faulty, replace it. IC AD 8031 (ident U8) for elevation is faulty on PCB 12003v1, replace this IC. Details : Refer Image 1

2

IC 7407 (ident U13) is faulty on PCB 12003v1, replace it. Details : Refer Image 1

Speed problem (Speed is very slow or very fast)
1

Solution :DIP IC UC 3843 (ident U1) is faulty on PCB 8004v2.0, replace it.Details : Refer Image 3

2

IGBT 30N60 (ident Q3) is faulty on PCB 8005v3.0, replace it.Details : Refer Image 2

3

Diode 60-60A (ident D13) is faulty on PCB 8005v3.0, replace it. Details : Refer Image 2

4

IGBT 30N60 (ident Q3) and Diode 60-60A (ident D13) is faulty on PCB 8005v3.0, replace them. Details : Refer Image 2

5

Thermistor NTC (ident TH1,TH2) are faulty on PCB 8005v3.0,replace it.Details : Refer Image 2

6

MOV capacitor (ident MOV1,MOV2, MOV3) are faulty,replace it. Even if only one mov capacitor is faulty on PCB 8005v3.0 ,replace all 3. Details : Refer Image 2

7

DIP transistor BC 547 (ident Q9, Q10) are faulty on PCB 8005v3.0, replace it.Details : Refer Image 2

8

SMD Resistor 4.7Kohm (ident R23) is shorted (Check on multi-meter whether it is shorted) on PCB 8005v3.0. Replace it. Details : Refer Image 2

9

DIP IC LM 324 (ident U3) is faulty on PCB 8005v3.0, replace it.Details : Refer Image 2

10

DIP IC UC 3843 (ident U1) is faulty on PCB 8005v3.0, replace it.Details : Refer Image 2

The main acqusition screen hangs
1

Select the USB option from configuration menu.

There are spikes on the ECG
1

IC MAX323 (Ident U1) is faulty on PCB 12003v1 replace it. You will also have to replace tantalum capacitors 1uf/25v (ident C1,C2,C3,C4) . If this IC is faulty then communication is established but the speed and elevation may vary.Details : Refer Image 1
